6" x 2" Metal Track Caster - Cast Iron Wheel - V-Groove Caster - 1000 lb. Capacity - Rigid - GroovedWheels.com - 1

GroovedWheels.com

6" x 2" Cast Iron Wheel - V-Groove Caster - 1000 lb. Capacity - Rigid

J-146VIRB620R
$43.61

For heavy duty and heavy loads.

V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.

Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride.

Call us at 800-262-2807 if you need any help (Mon - Fri 7:30am - 4:30pm CST)

Part Number: J-146VIRB620R

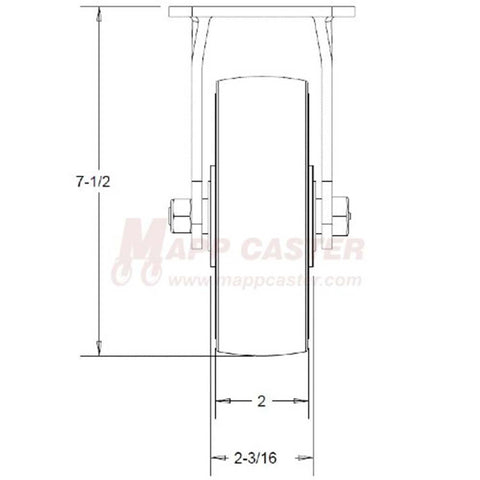

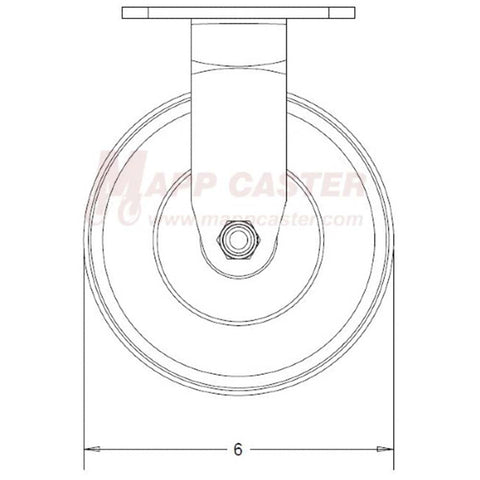

Technical Specs

Metric Specs Metric Specs
Max Capacity 1,000 lb. Frame Material Standard Iron
Wheel Diameter 6” Hub length 2-3/16"
Wheel Width 2" Bearing Bearing Included
Overall Height 7-1/2" Fits Axle Axle Included
Goove Width 7/8" Mounting Type Top Plate
Rigid/Swivel Rigid Top Plate Size 4" x 4-1/2"
Swivel Radius N/A Hole Spacing 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Material Cast Iron Attaching Bolt Size 3/8"
Wheel Color Black
