4" x 2" Cast lron V-Groove Wheel Swivel Caster - 600 Lbs Capacity
146VIRB420S
4" x 2" Cast lron V-Groove Wheel Swivel Caster - Part # 146VIRB420S

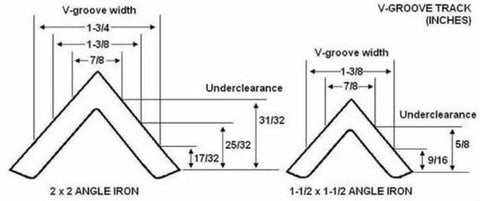

V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 600 |
Link to Matching Rigid Caster: 146VIR420R |
| Wheel Diameter: 4" | Wheel Durometer: Brinell 145 |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove | Swivel or Rigid Caster: Swivel |
|
Wheel Bearing Type: Precision Ball Bearing |
Swivel Radius: 3-1/4" |
| Overall Height: 5-5/8" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Temp Range: -45°F to 600°F | Mounting Plate: 4" x 4-1/2" |

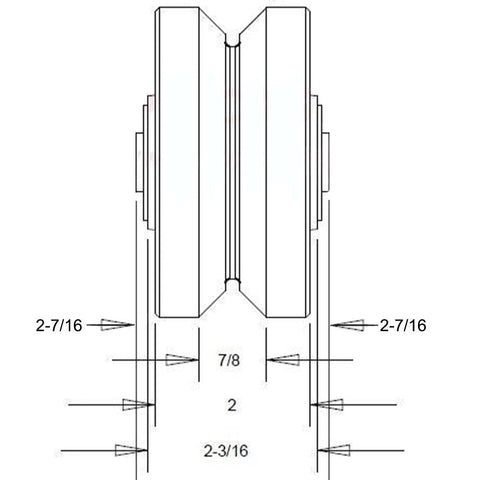

| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LVG420 | Weight: 5.99 Lbs |
