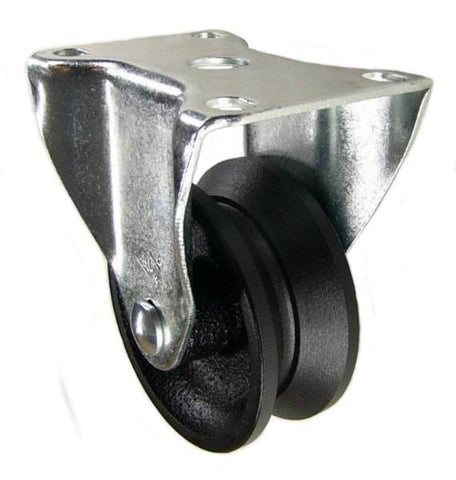

6" x 3" Ductile Steel Wheel - V-Groove Caster - 5000 lbs. Capacity - Rigid - 7/8" Groove
J-P7006301262
Economical and durable.
Ductile steel wheel is a combination of select alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel. It can be known as malleable iron, meaning it will flex rather than cracking or breaking when submitted to an extreme shock load. It is also an abrasion resistant wheel
V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.
- 5,000 lbs. capacity
- V Groove Width 7/8", Depth 7/16"
- 8" Overall height
- Temperature range: -45° F to 800° F. (with high temp bearing option)
- Bearing Type: Roller Bearing standard, other options available
Call us at 800-262-2807 if you need any help (Mon - Fri 7:30am - 4:30pm CST)
Part Number: J-P7006301262
More Technical Specs
| Metric | Specs | Metric | Specs |
|---|---|---|---|
| Max Capacity | 5,000 lb. | Frame Material | Standard Iron |
| Wheel Diameter | 6” | Hub length | 3-1/4" |
| Wheel Width | 3" | Bearing | Included |
| Overall Height | 8" | Fits Axle | Axle Included |
| Groove Width | 7/8" | Mounting Type | Plate |
| Rigid/Swivel | Rigid | Top Plate Size | 5" x 7.25" |
| Swivel Radius | N/A | Hole Spacing |
3.375" x 5.25" slotted 4.125" x 6.125" |
| Wheel Material | Ductile Steel | Attaching Bolt Size | 1/2" |
| Wheel Color | Dark Red |
