4" x 2" Ductile Steel Wheel - Metal Track Wheel Caster - V-Groove Casters - 1200 lb. Capacity - Rigid - - 1

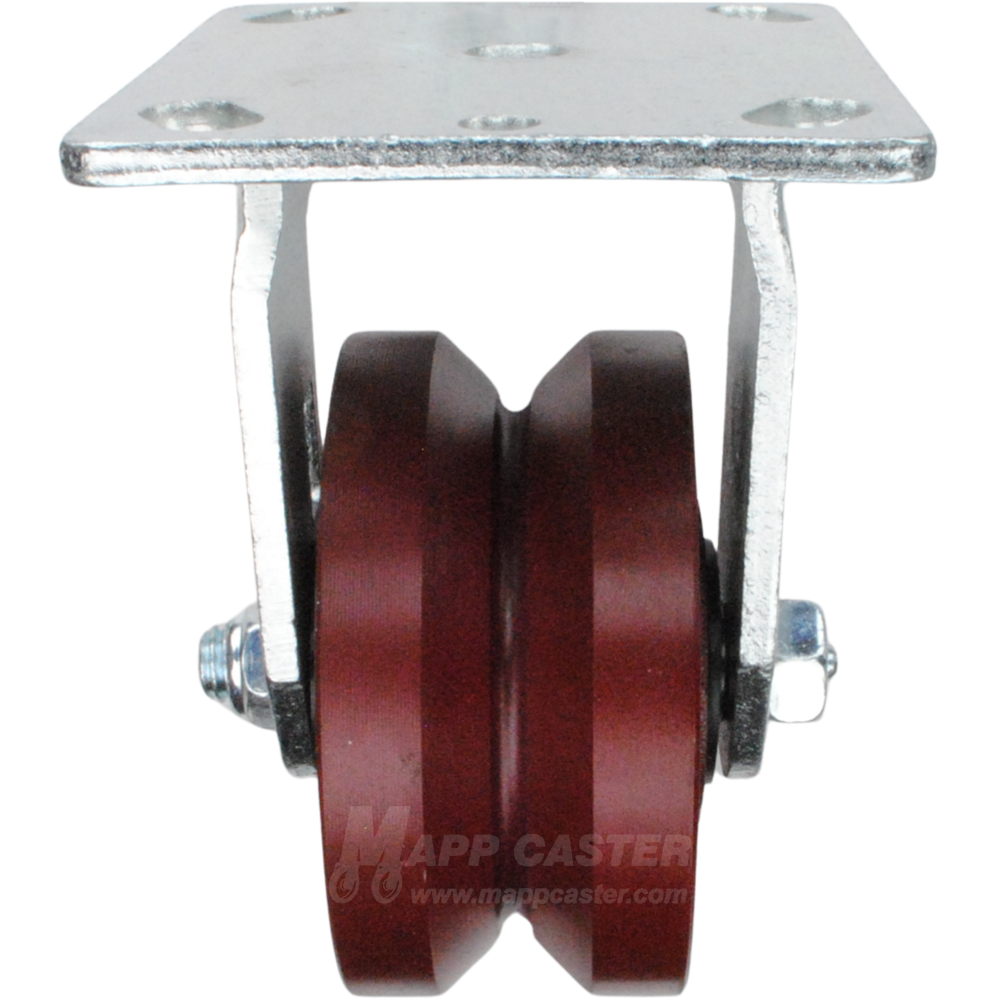

4" x 2" Ductile Steel Wheel - V-Groove Casters - 1500 lb. Capacity - Rigid

$41.17 $80.00

For heavy duty and heavy loads.

Ductile steel wheel is a combination of select alloys that give it higher weight capacities than cast iron, and is more economical than drop forged steel. It can be known as malleable iron, meaning it will flex rather than cracking or breaking when submitted to an extreme shock load. It is also an abrasion resistant wheel

V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.

Call us at 800-262-2807 if you need any help (Mon - Fri 7:30am - 4:30pm CST)

Technical Specs

Metric Specs Metric Specs
Max Capacity 1,500 lb. Hub length 2-3/16"
Wheel Diameter 4” Fits Axle Axle Included
Overall Height 5-5/8"” Bearing Bearing Included
Groove Width 7/8” Mounting Type Top Plate
Rigid/Swivel Rigid Top Plate Sizes 4" x 4-1/2"
Swivel Radius N/A Hole Spacing 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Material Ductile Steel Attaching Bolt Size 3/8"
Wheel Color Dark Red
Frame Material Standard Iron
