Mappcaster

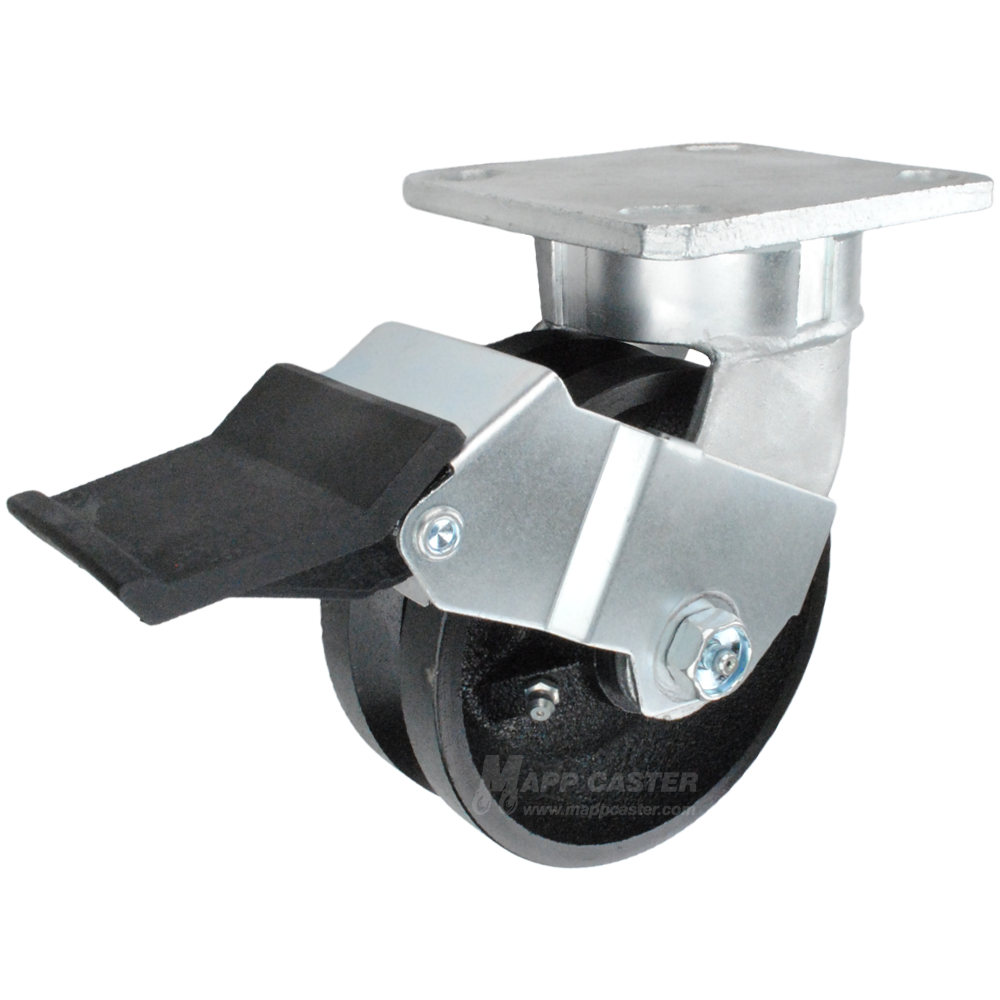

5" x 2" Cast Iron V-Groove Wheel Kingpinless Swivel Caster with Face Contact Brake - 900 Lbs Capacity
P51052VIRBAFCB
5" x 2" Cast Iron V-Groove Wheel Kingpinless Swivel Caster with Face Contact Brake - Part # P51052VIRBFCB
V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.
* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.
* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.
* This face contact brake is not compatible with all casters. However, we've found this particular caster to be one of the few that pairs effectively with it. These brakes are not intended for use on slopes or inclined surfaces. Excessive force or pushing against the wheel may reduce braking effectiveness or cause slippage.
Specifications:
| Load Capacity (lbs.): 900 |
Link to Matching Rigid Caster: P50052VIRB |
| Wheel Diameter: 5" | Wheel Durometer: Brinell 145 |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove |
Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearing Options | Swivel Radius: 6-3/8" |
| Overall Height: 6-1/2" | Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway |
| Temp Range: -45°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LVG520 | Weight: 9.058 Lbs |
