8" x 2" Cast Iron V-Groove Wheel Swivel Caster with Total Lock Brake - 1,200 Lbs Capacity
146VIRB820SBTL

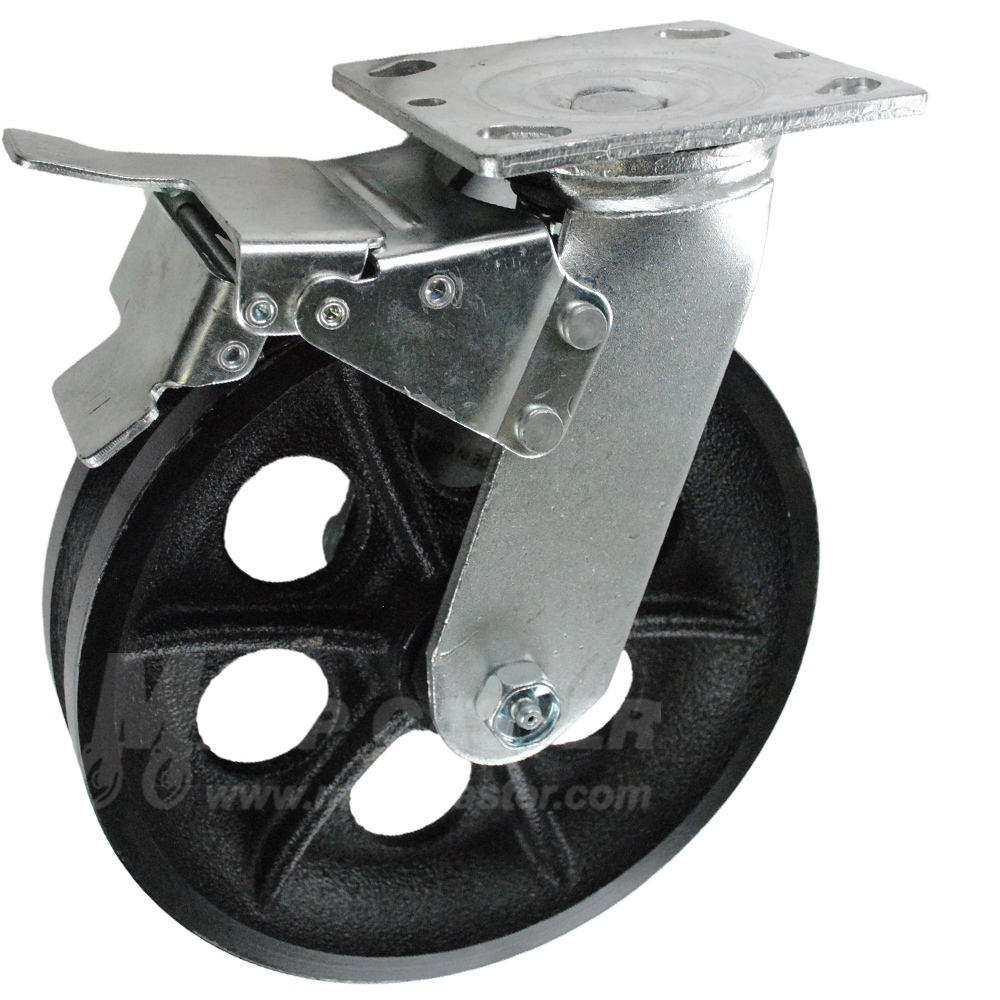

8" x 2" Cast Iron V-Groove Wheel Swivel Caster with Total Lock Brake - Part # 146VIRB820SBTL
V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel & forged steel wheels.
* This brake kit has a maximum temperature rating of 180°F due to its plastic pedal construction.
* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.
Specifications:
| Load Capacity (lbs.): 1200 | Link to Matching Rigid Brake Caster: 146VIRB820RB |
| Wheel Diameter: 8" | Wheel Durometer: Brinell 145 |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove |
Swivel or Rigid Caster: Swivel |

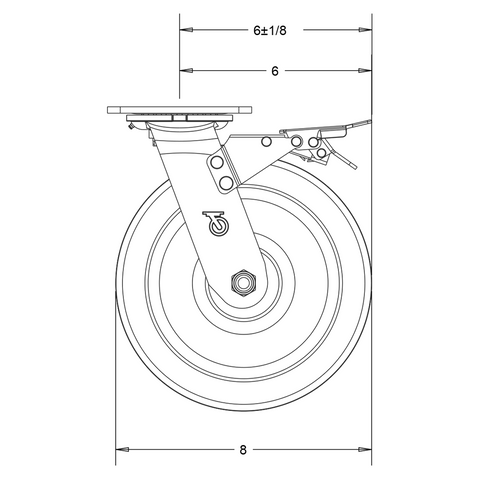

| Wheel Bearing Type: See Options | Swivel Radius: 6-5/8" |

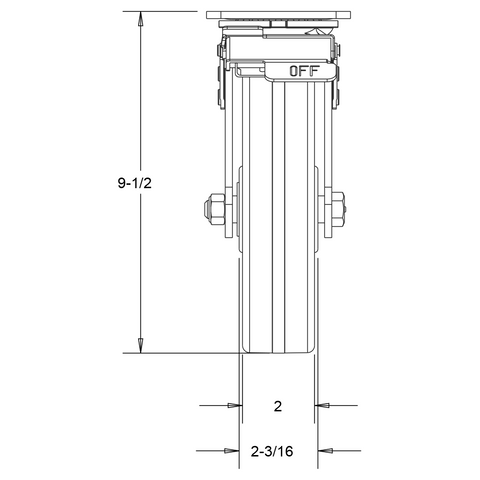

| Overall Height: 9-1/2" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |

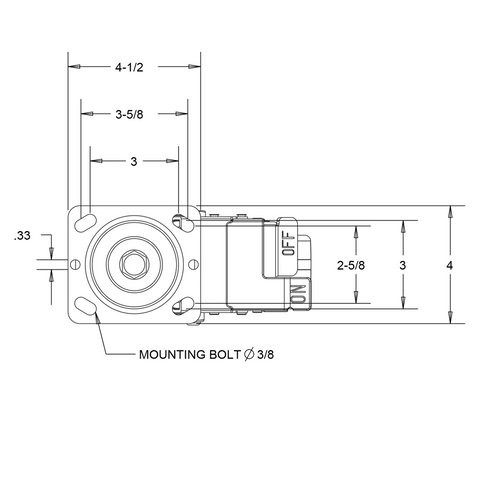

| Temp Range: -45°F to 180°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LVG820 | Weight: 13.814 Lbs |
