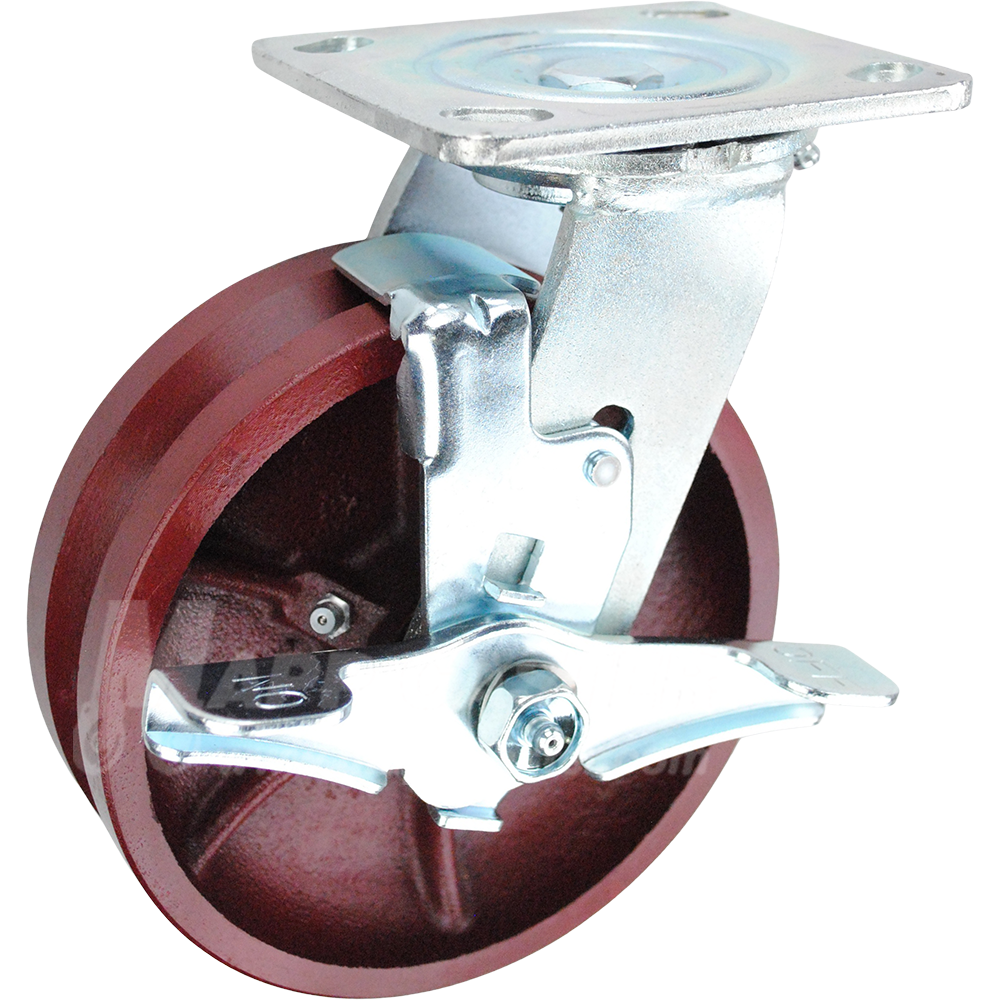

6" x 2" Ductile Steel V-Groove Wheel Swivel Brake Caster - 1,250 Lbs Capacity
146DVRB620SB
6" x 2" Ductile Steel V-Groove Wheel Swivel Brake Caster - Part # 146DVRB620SB
Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 1250 | Link to Matching Rigid Brake Caster: 146DVRB620RB |
| Wheel Diameter: 6" | Wheel Durometer: Rockwell 75B |
| Tread Width: 2" | Wheel Color: Red |
| Wheel Type: Cast Iron V-Groove |
Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Options |

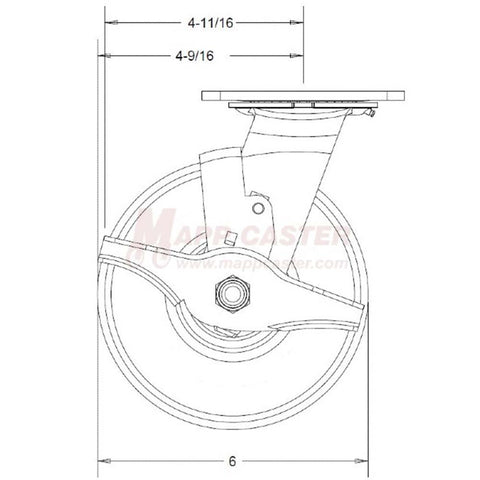

Swivel Radius: 4-9/16" |

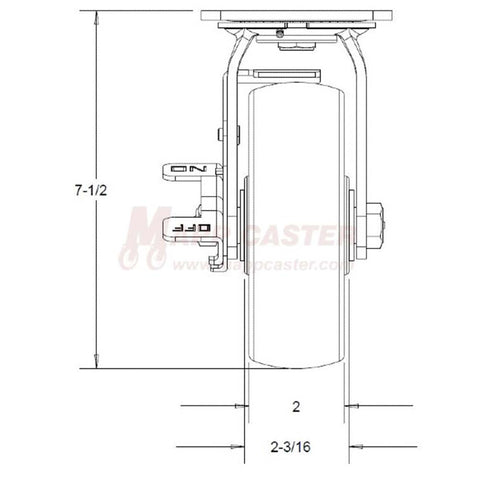

| Overall Height: 7-1/2" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
|
Temp Range: -45°F to 800°F |
Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LDV60JT84 | Weight: 9.406 Lbs |
