Mappcaster
6" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Caster - 1,000 Lbs Capacity
P50062VIRB

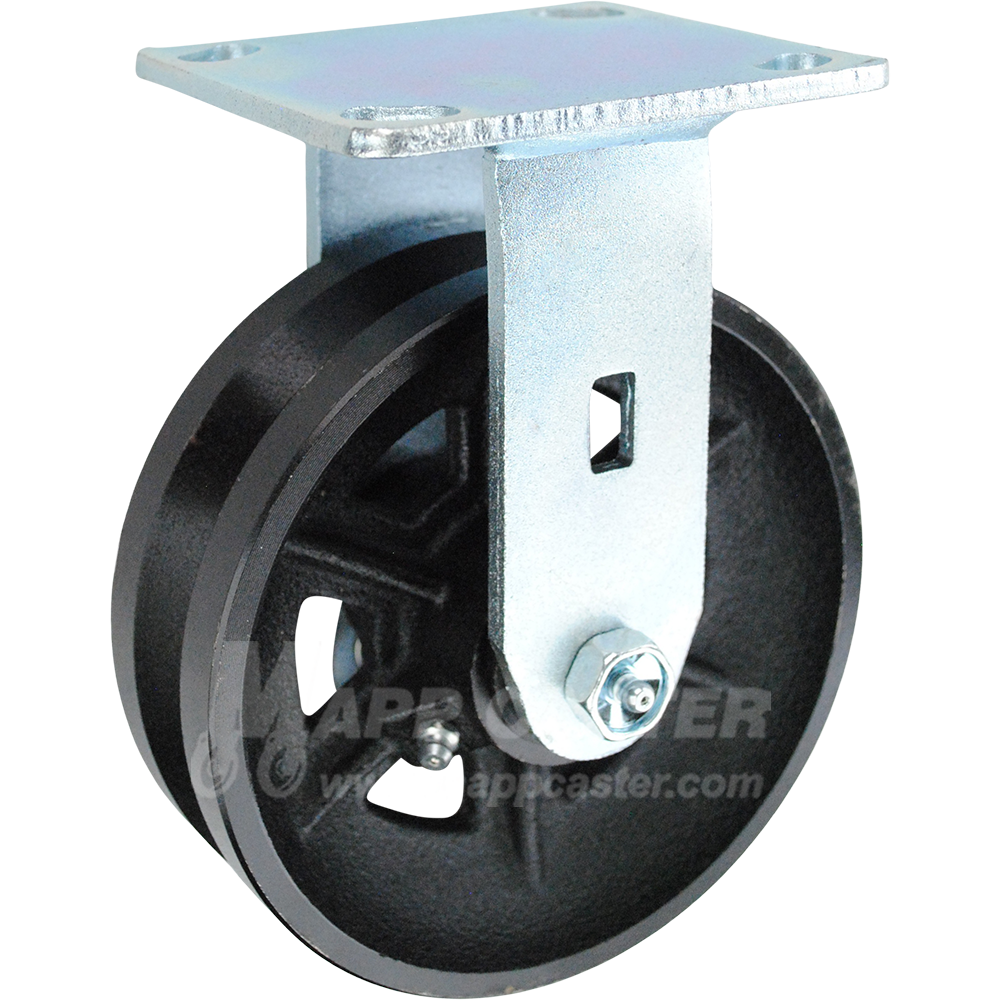

6" x 2" Cast Iron V-Groove Wheel Kingpinless Rigid Caster - Part # P50062VIRB
V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. The cast iron wheel offers a strong, resilient, cost effective solution for heavy loads. If more capacity is needed, check out the heavier duty ductile steel and forged steel wheels.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 1000 | Link to Matching Swivel Caster: P51062VIRB |

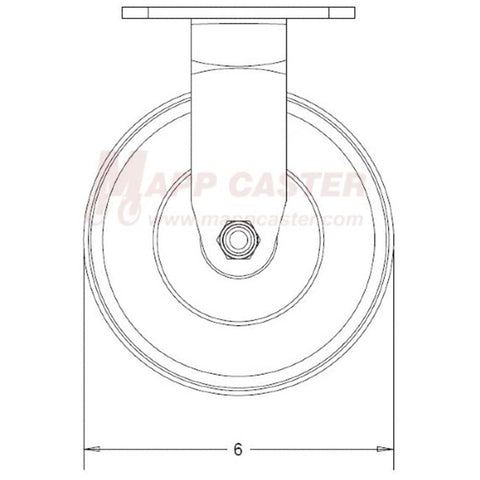

| Wheel Diameter: 6" | Wheel Durometer: Brinell 145 |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Cast Iron V-Groove | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options | Swivel Radius: N/A |

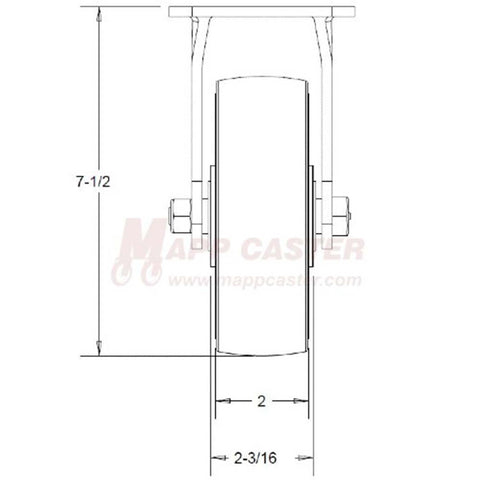

| Overall Height: 7-1/2" | Swivel Construction: N/A |
| Temp Range: -45°F to 600°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: QVGR6MO | Weight: 8.194 Lbs |
