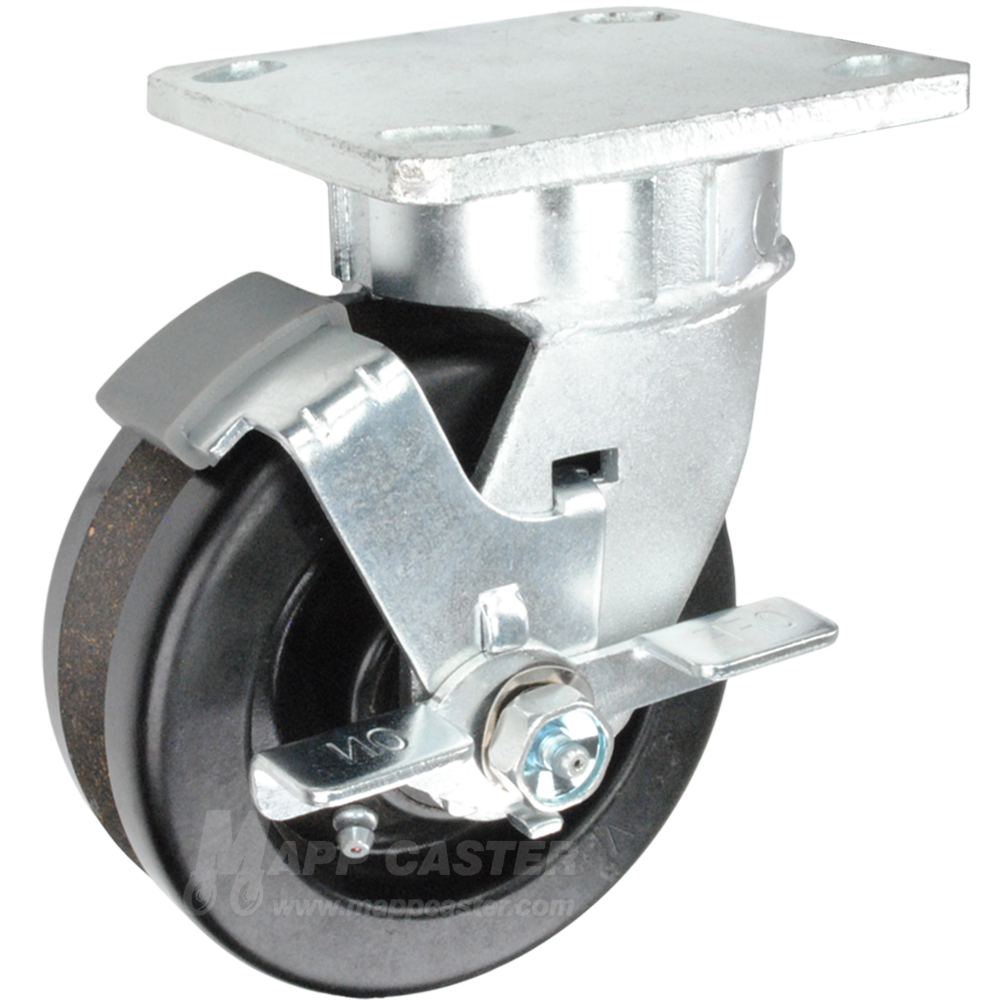

5" x 2" Phenolic V-Groove Wheel Kingpinless Swivel Brake Caster - 750 Lbs Capacity
P51052LPVTLB
5" x 2" Phenolic V-Groove Wheel Kingpinless Swivel Brake Caster - Part # P51052LPVTLB
V-Groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate while not on a track thanks to the tread on either side of the v-groove. Phenolic wheels are a great alternative to steel wheels. They provide similar capacity, but better floor protection, slightly quieter rolling, do not rust, & are more economically priced.
Phenolic wheels are made using phenolic resin mixed with macerated canvas which yields a high capacity & high impact wheel. They have hard treads & will not flat spot over time which is why they are often used on equipment that is under constant heavy loads. Phenolic wheels are resistant to oil, grease, solvents, non-metallic, & non-sparking.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
* Our kingpinless swivel caster rigs outlast traditional kingpin designs by preventing stretch-induced plate & fork separation. Providing more durability & more capacity (depending on the wheel) while reducing downtime & replacements.
Specifications:
| Load Capacity (lbs.): 750 | Link to Matching Rigid Brake Caster: P50052LPVTLB |
| Wheel Diameter: 5" | Wheel Durometer: Shore D 90 (-/+) |
| Tread Width: 2" | Wheel Color: Black |
|
Wheel Type: Phenolic V-Groove |
Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearing Options |
Swivel Radius: 4" |
| Overall Height: 6-1/2" | Swivel Construction: Kingpinless - Heat Treated Precision Machined Raceway |
| Temp Range: - 50°F to 250°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LPV520 | Weight: 6.286 Lbs |
