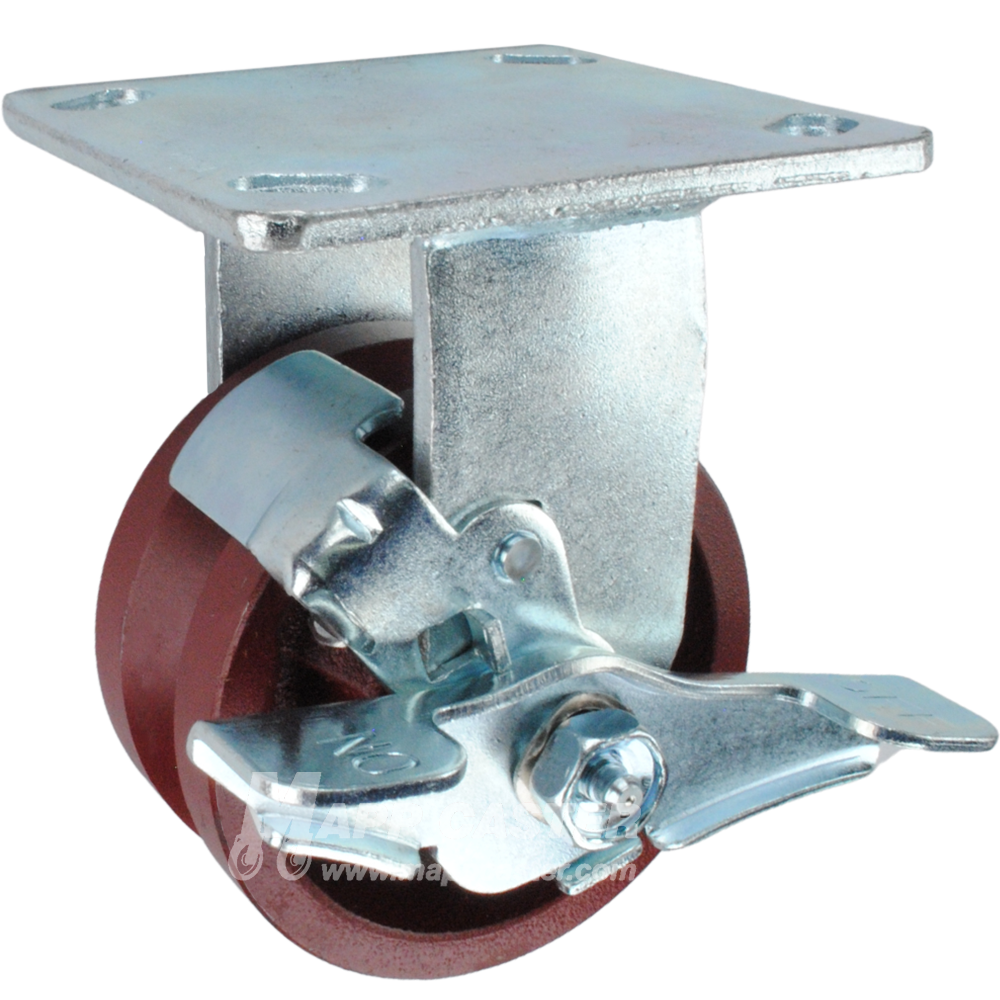

4" x 2" Ductile Steel V-Groove Wheel Rigid Brake Caster - 1,250 Lbs Capacity
146DVRB420RB
4" x 2" Ductile Steel V-Groove Wheel Rigid Brake Caster - Part # 146DVRB420RB
Ductile V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
|
Load Capacity (lbs.): 1,250 |
Link to Matching Swivel Brake Caster: 146DVRB420SB Link to Matching Swivel Caster with Total Locking Brake: 146DVRB420SBTL |
| Wheel Diameter: 4" |
Wheel Durometer: Rockwell 74B |
| Tread Width: 2" |
Wheel Color: Red |
|
Wheel Type: Ductile Steel |
Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: See Bearings Options |
Swivel Radius: N/A |
| Overall Height: 5-5/8" | Swivel Construction: N/A |

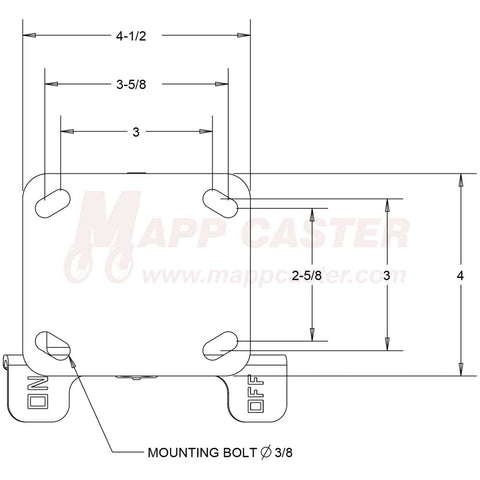

| Temp Range: - 45°F to 800°F | Mounting Plate: 4" x 4-1/2" |
| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: QVGR4M0 | Weight: 7.75 Lbs |
