4" x 2" Nylon V-Groove Wheel Swivel Caster with Total Locking Brake - 800 Lbs Capacity
146LMV420SBTL
4" x 2" Nylon V-Groove Wheel Swivel Caster with Total Locking Brake - Part # 146LMV420SBTL
Nylon wheels are made to be 100% washable & steam cleanable. They are also highly resistant to grease, oils, most chemicals, cleaning solutions, salt, blood & brine.

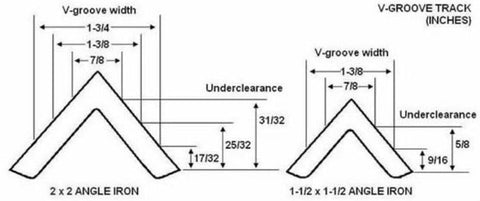

V groove wheels are designed to guide equipment by rolling on inverted angle iron track. Please note if more than one track is being used, it is critical for the tracks to be parallel, strait and level. Otherwise the wheels could bind or derail. Recommend track tolerance is 1/64" per 20 Feet.
* Please note temperature ratings are dependent upon the bearings selected.
* Total locking brake casters work best with softer wheels like neoprene, soft rubber, thermoplastic rubber & polyurethane. The softer wheel allows the brake pad to grip the tread effectively. While total locking brakes also work with harder wheels, a strong push may cause slight movement of the caster wheel.
Specifications:
| Load Capacity (lbs.): 800 |
Link to Matching Rigid Brake Caster: 146LMV420RB |
| Wheel Diameter: 4" |
Wheel Durometer: Shore D 85 |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Nylon V-Groove | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options |
Swivel Radius: 7-11/16" |
| Overall Height: 5-5/8" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Temp Range: -45°F to 250°F | Mounting Plate: 4" x 4-1/2" |

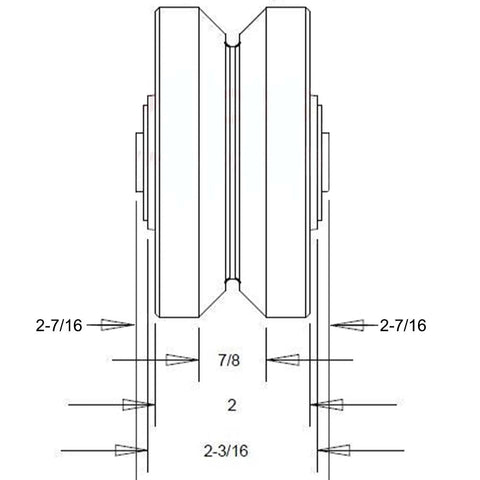

| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |

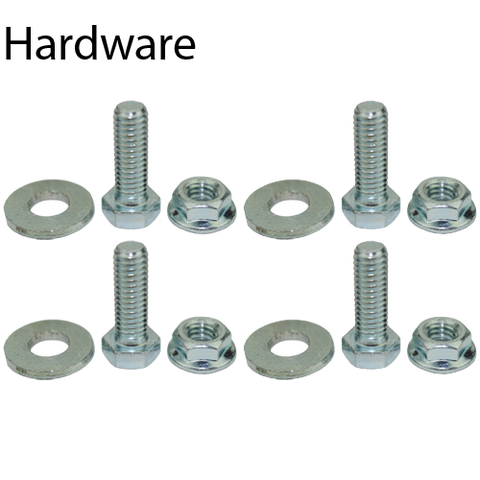

| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
|
Link to Replacement Wheel: LMV40JT |
Weight: 5.514 Lbs |
