4" x 2" Nylon V-Groove Wheel Rigid Brake Caster - 800 Lbs Capacity
146LMV420RB
4" x 2" Nylon V-Groove Wheel Rigid Brake Caster - Part # 146LMV420RB
Nylon wheels are made to be 100% washable & steam cleanable. They are also highly resistant to grease, oils, most chemicals, cleaning solutions, salt, blood & brine.

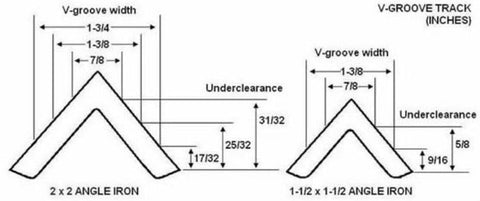

V-groove wheels are designed to guide equipment by rolling on inverted angle iron track. Please note if more than one track is being used, it is critical for the tracks to be parallel, strait and level. Otherwise the wheels could bind or derail. Recommend track tolerance is 1/64" per 20 Feet.
*Please note temperature ratings are dependent upon the bearings selected.
Specifications:
| Load Capacity (lbs.): 800 |
Link to Matching Swivel Brake Caster: 146LMV420SB Link to Matching Swivel Caster with Face Contact Brake: 146LMV420SFCB Link to Matching Swivel Caster with Total Locking Brake: 146LMV420SBTL |
| Wheel Diameter: 4" | Wheel Durometer: Shore D 85 (+/-5) |
| Tread Width: 2" | Wheel Color: Black |
| Wheel Type: Nylon V-Groove | Swivel or Rigid Caster: Swivel |
| Wheel Bearing Type: See Bearings Options |
Swivel Radius: 3-1/4" |
| Overall Height: 5-5/8" | Swivel Construction: Double Ball Raceway - 5/8" Kingpin |
| Temp Range: -45°F to 250°F | Mounting Plate: 4" x 4-1/2" |

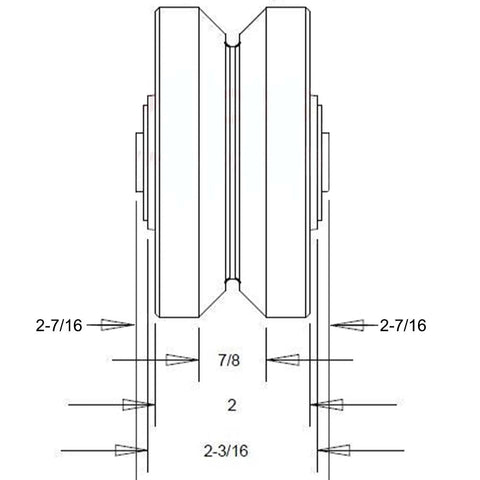

| V-Groove Width: 7/8" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 7/16" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LMV40JT | Weight: 4.02 Lbs |
