3" x ~7/8" (75 mm x 22 mm) Metal V- Groove  Track Wheel - Solid Steel - 550 lb. Capacity - GroovedWheels.com - 1

GroovedWheels.com

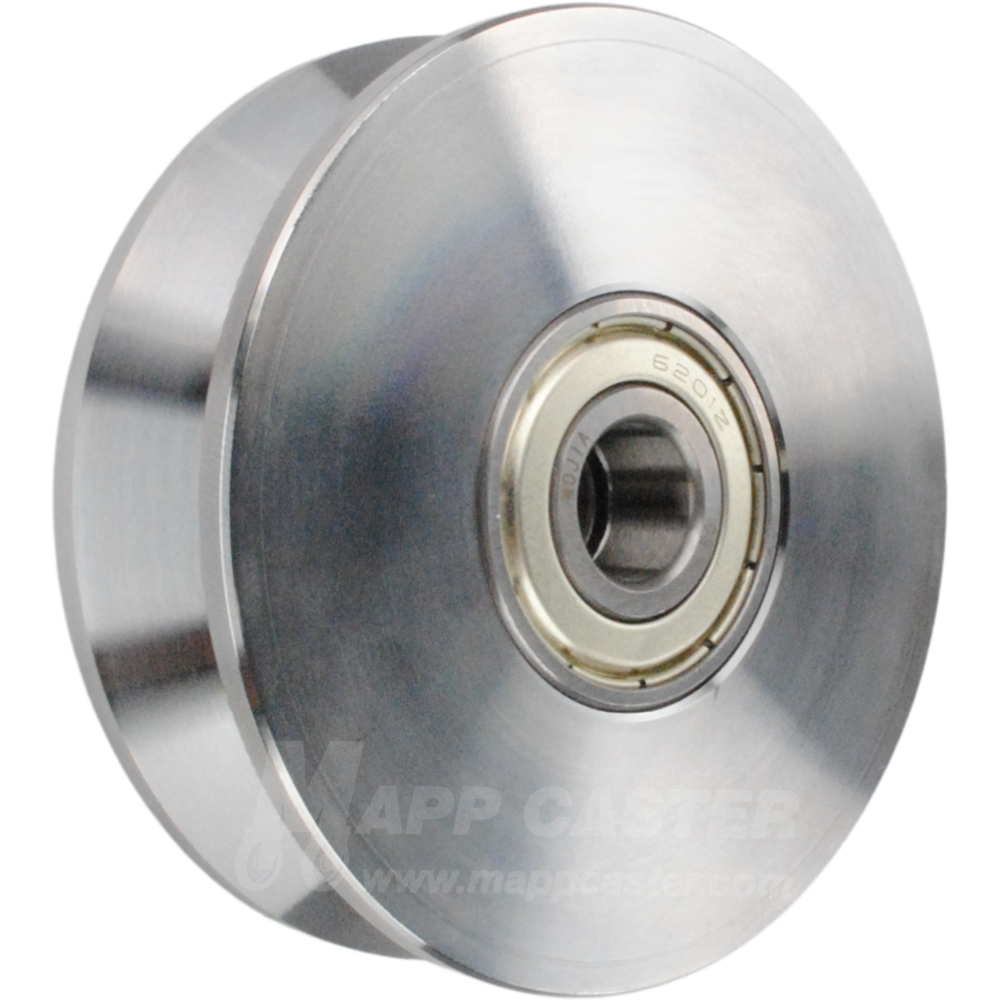

3" x 7/8" (75 mm x 22 mm) V- Groove Wheel - Solid Steel - 550 lb. Capacity

J-EDSPK-75K
$29.73

This 75 mm x 22 mm V-Groove Wheel is made out of solid steel and has a lightly oiled surface giving it a polished, clean finish. The solid steel material allows for exceptionally low rolling resistance, outstanding wear resistance, and extremely high static and dynamic load capacity.

This type of v-track wheel is often used use for sliding gates, barn doors, or hauling//rolling equipment on iron tracks. V-groove wheels are particularly useful for applications where precise alignment or indexing of equipment is necessary.

Ideal for:

  • Production line or other industrial environments
  • Sliding barn doors
  • Sliding gates or rolling doors
  • Towing, rolling, moving heavy equipment or objects on v-tracks

 Tip: Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle.

Features:

  • Sealed precision ball bearings with life long grease - no  maintenance
  • 12 mm axle bore
  • 550 lbs. capacity
  • Temperature range: -13° F to 250° F
  • Great for interior barn doors
  • Runs on 7/64" Flat Bar or less

Part Number: J-EDSPK-75K

 Technical Specs

Metric Specs Metric Specs
Max Capacity 550 lb. Wheel Color Silver/Yellow Zinc
Wheel Diameter 75 mm (about 3") Bore 12 mm
Wheel Width 22 mm (about 7/8") Bearing

Sealed  Ball Bearing (life long grease)

Groove Width 5/8"
Wheel Material Solid Steel
