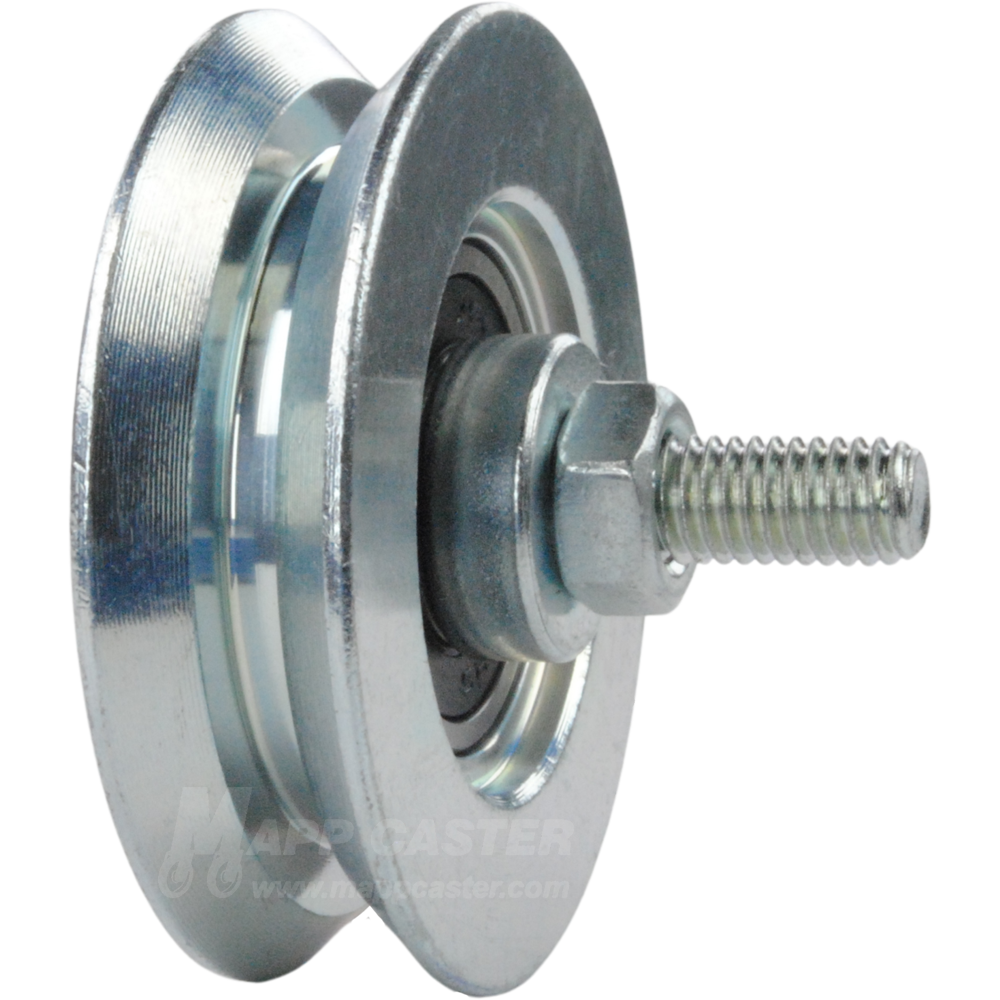

60mm x 17mm (2.36" x 0.67") Solid Steel V-Groove Wheel w/ Ball Bearings - 220 Lbs Capacity

60mm x 17mm (2.36" x 0.67") Solid Steel V-Groove Wheel w/ Ball Bearings - Part # H306Y-60

This solid steel wheel, featuring a lightly oiled & polished finish, delivers ultra-low rolling resistance and excellent wear performance. Engineered for heavy-duty use, it offers exceptional static and dynamic load capacities, making it ideal for industrial and high-load applications.

V-groove wheels are designed to guide equipment by rolling on inverted angle iron track. Please note if more than one track is being used, it is critical for the tracks to be parallel, strait and level. Otherwise the wheels could bind or derail. Recommend track tolerance is 1/64" per 20 Feet.

*(included with 8mm x 1-3/4" long bolt)

Specifications:

Capacity: 220 Lbs.	Wheel Type:Steel V-Groove
Wheel Diameter:60 mm (2.362")	Hub Length (without Bearings): N/A
Tread Width:17 mm (0.669")	Hub Length (with Bearings):24 mm (0.944")
Groove Width:13 mm (0.511")	Groove Depth: 9 mm (0.354")
Bearing Type: Ball Bearing	Wheel Durometer:Brinell 190
Plain Bore ID: N/A	Wheel Tread Shape:V-Groove
Accepted Axle/Bearing ID:8mm	Wheel Color:Silver
Temp Range: -13˚F to 180˚F	Weight: 0.548 lbs

Capacity:220 lbs.

Wheel Type:Steel V-Groove

Wheel Diameter:60 mm (2.362")

Tread Width:17 mm (0.669")

Hub Length (without Bearings): N/A

Hub Length (with Bearings): 24 mm (0.944")

Groove Width: 13 mm (0.511")

Groove Depth: 9 mm (0.354")

Bearing Type: Ball Bearing

Plain Bore ID: N/A

Accepted Axle/Bearing ID:8mm

Wheel Durometer:Brinell 190

Wheel Tread Shape:V-Groove

Temp Range: -13˚F to 180˚F

Wheel Color:Silver

Weight: 0.548 lbs
