6" x 3" Ductile Steel V-Groove Wheel, 1-3/8" Wide Groove - 5,000 Lbs Capacity
LDVG630

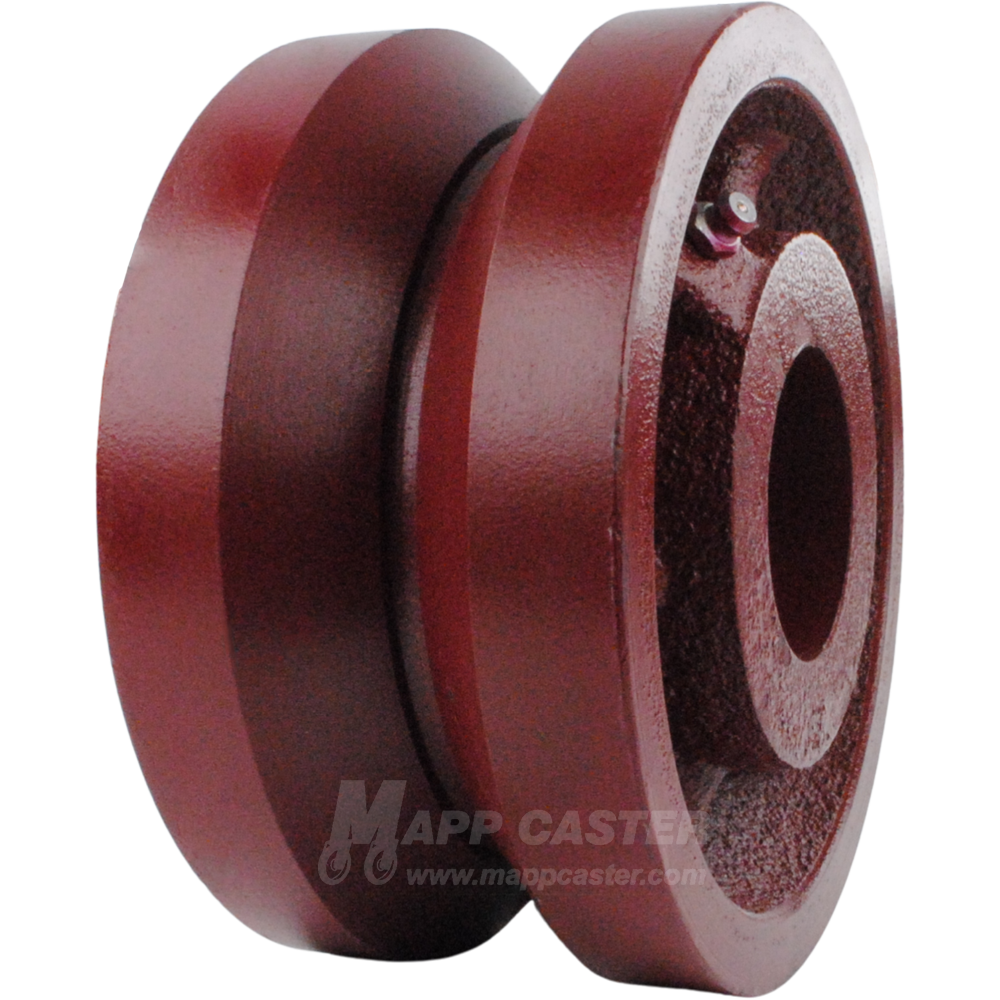

6" x 3" Ductile Steel V-Groove Wheel - Part # LDVG630
V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Made from a combination of alloys that provide excellent tensile strength, these wheels come with extra thick treads, hubs & walls. Ductile steel is a step up from cast iron, offering higher capacity & temperatures. For even greater capacity, consider the heavier-duty forged steel wheels.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
 Capacity: 5,000 Lbs. |
 Wheel Type:Ductile Steel V-Groove |
 Wheel Diameter:6" |
 Hub Length (without Bearings):3-1/4" |
 Tread Width:3" |
 Hub Length (with Bearings):See Bearing Options |
 Groove Width:1-3/8" |
 Groove Depth: 11/16" |
 Bearing Type:None |
 Wheel Durometer:Rockwell 74B |
 Plain Bore ID:1-15/16" |
 Wheel Tread Shape:V-Groove |
 Accepted Axle/Bearing ID:See Bearing Options |
 Wheel Color:Red |
 Temp Range: -45˚F to 800˚F |
 Weight:13.776 lbs |
|
Capacity:5,000 lbs. |
|
Wheel Type:Ductile Steel V-Groove |
|
Wheel Diameter:6" |
|
Tread Width:3" |
|
Hub Length (without Bearings):
3-1/4" |
|
Hub Length (with Bearings): See Bearing Options
|
|
Groove Width: 1-3/8"
|
|
Groove Depth: 11/16"
|
|
Bearing Type:None |
|
Plain Bore ID:1-15/16" |
|
Accepted Axle/Bearing ID:See Bearing Options |
|
Wheel Durometer:Rockwell 74B |
|
Wheel Tread Shape:V-Groove |
|
Temp Range: -45˚F to 800˚F |
|
Wheel Color:Red |
|
Weight: 13.776 lbs |
