3" x 1-1/4" Cast Iron V-Groove Wheel - 350 Lbs Capacity
LVG314

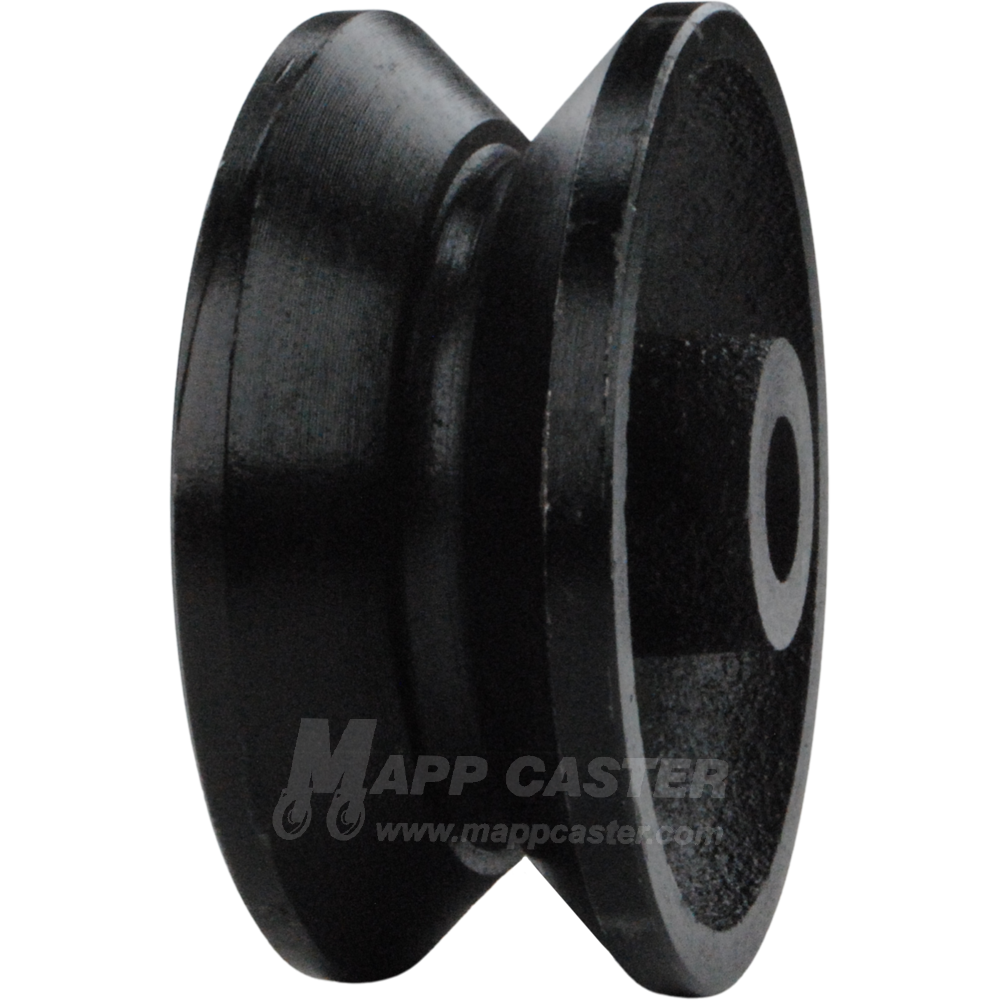

3" x 1-1/4" Cast Iron V-Groove Wheel - Part # LVG314
This V-groove wheel comes is a popular choice for those building their own interior sliding barn doors.
V-groove wheels are designed to guide equipment by rolling on inverted angle iron track, however, they can also operate off the track thanks to the tread on either side of the v-groove. While not designed to run on flat iron, there is a .25" opening in the v-groove that can be used with 3/16" flat iron tracks.
Cast Iron is the standard metal wheel used by most unless a heavier capacity or greater impact strength metal wheel is needed. For applications requiring more capacity or impact strength, check out the ductile steel & forged steel wheel caster options.
*Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
 Capacity: 350 Lbs. |
 Wheel Type:Cast Iron V-Groove |
 Wheel Diameter:3" |
 Hub Length (without Bearings):1-9/16" |
 Tread Width:1-1/4" |
 Hub Length (with Bearings):1-5/8" |
 Groove Width:7/8" |
 Groove Depth: 7/16" |
 Bearing Type:None |
 Wheel Durometer:Brinell 145 |
 Plain Bore ID:1/2" |
 Wheel Tread Shape:V-Groove |
 Accepted Axle/Bearing ID:1/2" |
 Wheel Color:Black |
 Temp Range: -45˚F to 600˚F |
 Weight: 0.95 lbs |
|
Capacity:350 lbs. |
|
Wheel Type:Cast Iron V-Groove |
|
Wheel Diameter:3" |
|
Tread Width:1-1/4" |
|
Hub Length (without Bearings):
1-9/16" |
|
Hub Length (with Bearings): 1-5/8"
|
|
Groove Width: 7/8"
|
|
Groove Depth: 7/16"
|
|
Bearing Type:None |
|
Plain Bore ID:1/2" |
|
Accepted Axle/Bearing ID:1/2" |
|
Wheel Durometer:Brinell 145 |
|
Wheel Tread Shape:V-Groove |
|
Temp Range: -45˚F to 600˚F |
|
Wheel Color:Black |
|
Weight: 0.95 lbs |
