Mappcaster
5" x 2-5/16" U-Groove Zinc Plated Steel Wheel - 6,000 Lbs Capacity
PMUG5050SB

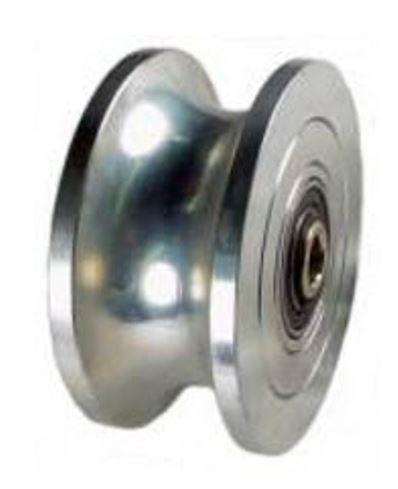

5" x 2-5/16" U-Groove Solid Steel Wheel - Part # PMUG5050SB
This 5" x 2-5/16" U-groove wheel is made out of solid steel providing exceptionally low rolling resistance, outstanding wear resistance, and extremely high static and dynamic load capacity.
This wheel is designed to be used with pipe with and O.D. of 1-5/8" or smaller

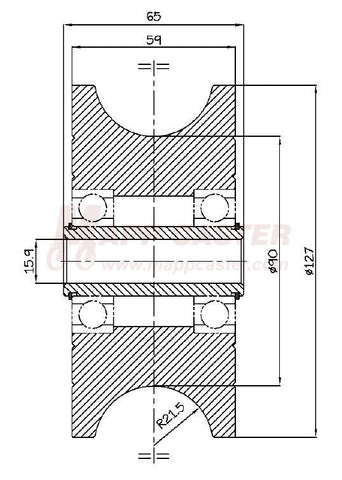

Specifications:
| Capacity (lbs.): 6,000 |
Hub Length: 2-9/16"
|
| Wheel Diameter: 5" | Groove Width: 1.680" |
| Tread Width: 2-5/16" | Groove Depth: 5/8" |
| Wheel Type: Solid Steel U-Groove | Durometer: N/A |
| Bearing ID: See Bearing Options | Temp Range: -40˚F to 180˚F |
| Bearing Type Sealed Ball Bearings | Weight: 9.00 Lbs |
