Mappcaster

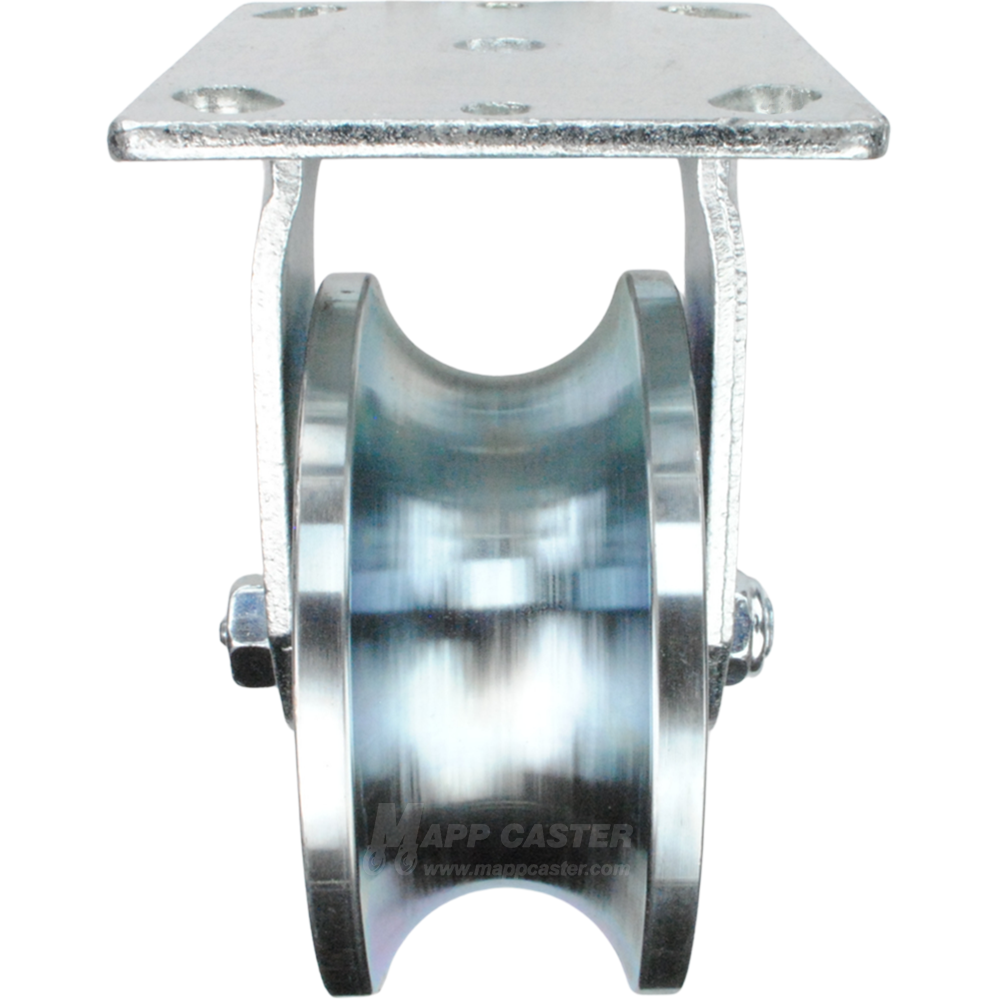

5" x 2-5/16" Forged U-Groove Wheel Kingpinless Rigid Caster - 2,000 Lbs Capacity
P50052PMUG
5" x 2-5/16" Forged U-Groove Wheel Kingpinless Rigid Caster - Part # P50052PMUG
U-Groove wheels are designed to guide equipment by rolling on pipe, however can also operate off a track thanks to the tread on either side of the U-groove. Forged steel wheel casters are the premium of all the steel wheel casters. The forged steel wheel is made from ASTM 1045 high carbon steel that is hot drop forged. It offers the maximum weight capacity, impact strength & durability of all caster wheels. While forged steel is incredibly resilient, it is the harshest wheel type for floors & could lead to floor damage.
* Please note temperature ratings are dependent upon the bearing selected. Unless noted otherwise in the options, bearings will have a 180°F temperature rating.
Specifications:
| Load Capacity (lbs.): 2,000 |
Link to Matching Swivel Caster: Not Available Due to Dimensions of Wheel |
| Wheel Diameter: 5" | Wheel Durometer: Rockwell 89-93 B |
| Tread Width: 2-5/16" |
Wheel Color: Silver |
| Wheel Type: Forged Steel | Swivel or Rigid Caster: Rigid |
|
Wheel Bearing Type: Ball Bearing |
Swivel Radius: N/A |
| Overall Height: 6-1/2" | Swivel Construction: N/A |
| Temp Range: -40°F to 550°F | Mounting Plate: 4" x 4-1/2" |
| U-Groove Width: 1.680" | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| V-Groove Depth: 5/8" | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: PMUG5050SB | Weight: 10.252 Lbs |
