5" x 1-13/32" Flanged Nylon Wheel - 2,200 lbs Capacity
LFN5J604P

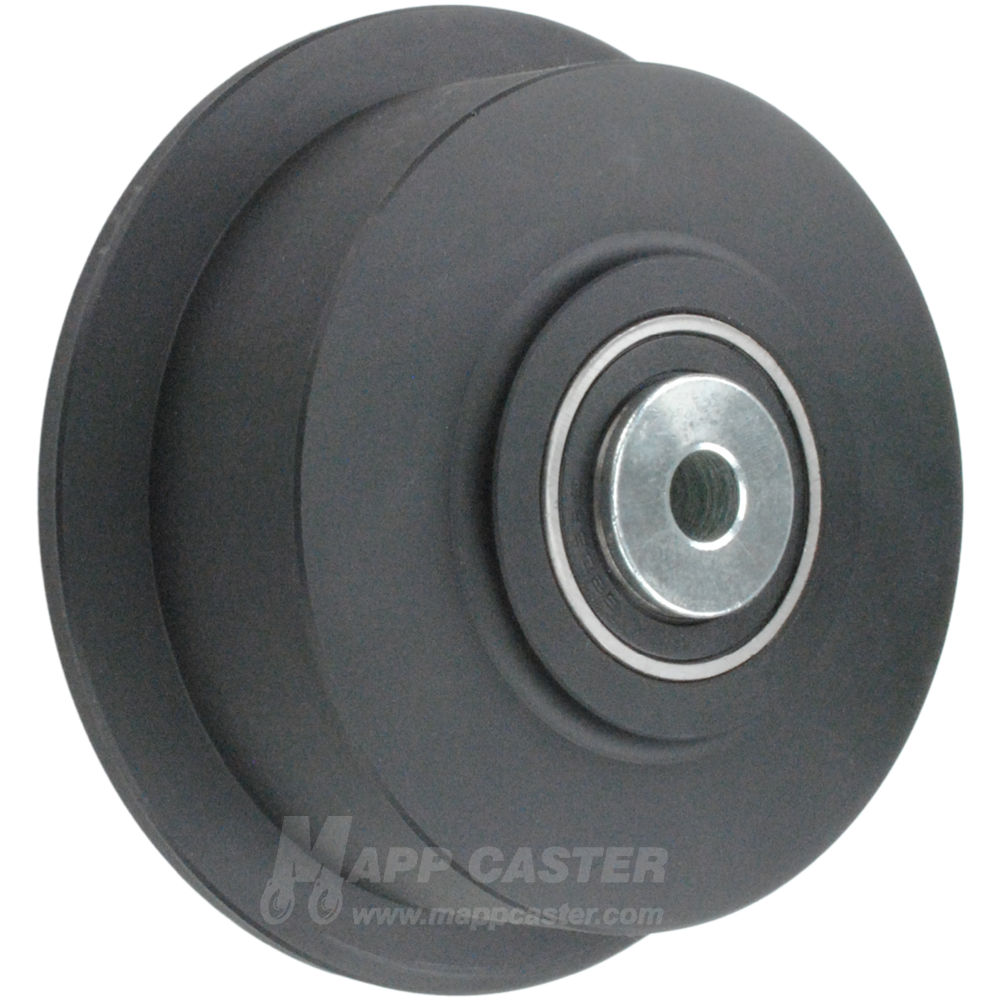

5" x 1-13/32" Flanged Nylon Wheel - Part # LFN5J604P
These nylon flanged wheels are specifically designed for smooth operation on rails, offering superior performance and durability. These wheels feature a flanged design that ensures precise tracking & stability, preventing derailment while rolling along guided tracks. They provide a higher load capacity & greater durability compared to traditional cast iron wheels, making them an excellent choice for heavy-duty applications. With their resistance to wear, impact, & corrosion, nylon flanged wheels are ideal for environments that demand reliable & long-lasting performance, such as material handling systems, conveyors, & industrial machinery.

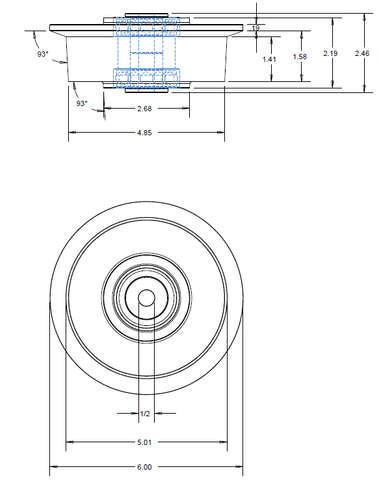

Specifications:
| Load Capacity (lbs.): 2,200 | Hub Length (Plain Bore): 2-1/4" |
|
Inner Wheel Diameter: 5" Outer Wheel Diameter: 6" |
Hub Length (with Bearings): 2-1/2 (with bushings) 2-1/4" (without bushings) |
|
Overall Tread Width: 1-25/32" Roll-able Tread Width: 1-13/32" Flange Width: 3/8" |
Wheel Color: Black |
| Bearing Type: Precision Ball Bearings | Wheel Durometer: N/A |
| Plain Bore ID: 52 mm | Low Temp Range: -15˚F |
|
Bearing ID: 1/2" (with bushings) 25 mm (without bushings) |
High Temp Range: 175˚F |
| Wheel Type: Nylon Flanged | Weight: 2.322 Lbs |
