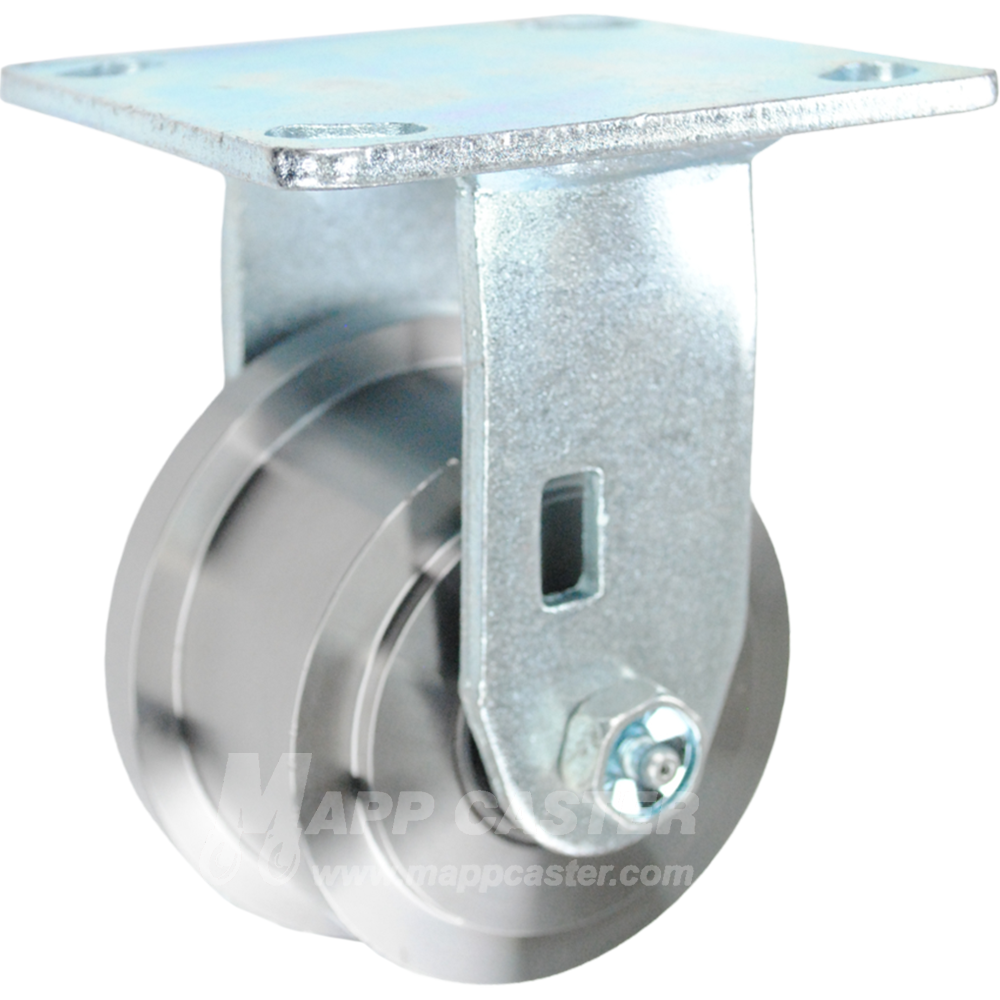

3-1/2" x 1-7/16" Flanged Forged Steel Wheel Kingpinless Rigid Caster - 2000 Lbs Capacity
P50042FTBB
3-1/2" x 1-7/16" Flanged Forged Steel Wheel Kingpinless Rigid Caster - Part # P50042FTBB
Flanged wheels are designed to roll on rails and are designed for the toughest loads. The solid steel wheel is made machined steel. It offers the maximum weight capacity, impact strength, and durability of all other wheels.
*Recommended Rail Type: ASCE16
Specifications:
| Load Capacity (lbs.): 2000 lbs. |
Link to Matching Swivel Caster: P51042FTBB |
|
Inner Wheel Diameter: 3-1/2" Outer Wheel Diameter: 4-1/8" |
Caster Rig Material Type: Rockwell 80B |
|
Overall Tread Width: 1-7/8" Roll-able Tread Width: 1-7/16" Flange Width: 7/16" |
Caster Rig Color/Finish: Chrome |
| Wheel Type: Forged Steel | Swivel or Rigid Caster: Rigid |
| Wheel Bearing Type: Ball Bearing | Swivel Radius: N/A |
| Overall Height: 5-5/8" | Swivel Construction: N/A |
| Temp Range: -150°F to 1200°F | Mounting Plate: 4" x 4-1/2" |
| Wheel Durometer: Rockwell 80B | Bolt Hole Pattern: 2-5/8" x 3-5/8" slotted to 3"x 3" |
| Wheel Color: Silver | Mounting Bolt Size: 3/8" or Smaller |
| Link to Replacement Wheel: LFT3J3012 | Weight: lbs. |
