3" x 1-1/4" Metal Track Caster - Cast Iron Wheel V-Groove Caster - 225 lb. Capacity - Rigid - GroovedWheels.com - 1

GroovedWheels.com

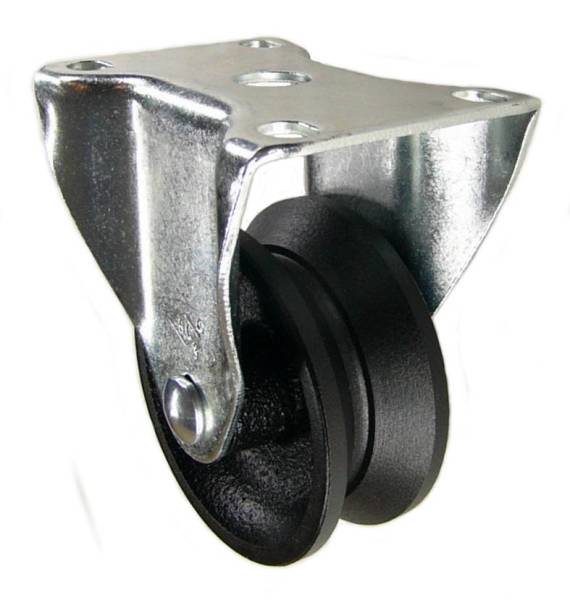

3" x 1-1/4" Cast Iron Wheel V-Groove Caster - 350 lb. Capacity - Rigid

J-Q5230R01VG
$15.88

This 3" x 1-1/4" Cast Iron V-Groove Rigid Caster or “semi-steel” is a strong, durable and cost effective solution that can carry heavy loads. With a max capacity of 350 lbs and an operating temperature range of -45° to +600° Fahrenheit, this caster rolls easily on clean, debris free floors and tracks. This wheel is not recommended for wet environments as it can rust.

V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.

Cast iron/Semi-steel wheel offers a strong, resilient, cost effective solution for heavy loads. The hard tread rolls easily and allows high abrasion resistance; Smooth face allows for symmetrical ride.

Call us at 800-262-2807 if you need any help (Mon - Fri 7:30am - 4:30pm CST)

Part Number: J-Q5230R01VG

Technical Specs

Metric Specs Metric Specs
Max Capacity 350 lb. Hub length 1-5/8"
Wheel Diameter 3” Fits Axle Axle Included
Overall Height 4-1/4” Bearing Plain Bearing Included
Wheel Width 1-1/4" Mounting Type Top Plate
Rigid/Swivel Rigid Top Plate Sizes 2-1/2" x 3-3/4"
Swivel Radius N/A Hole Spacing 1-3/4" x 2-15/16"
Wheel Material Cast Iron Attaching Bolt Size 5/16"
Wheel Color Black Groove Width 7/8"
Frame Material Standard Iron
