6" x 3" Forged Steel V-Groove Wheel, Large Bore - 6,000 Lbs Capacity
P063002539

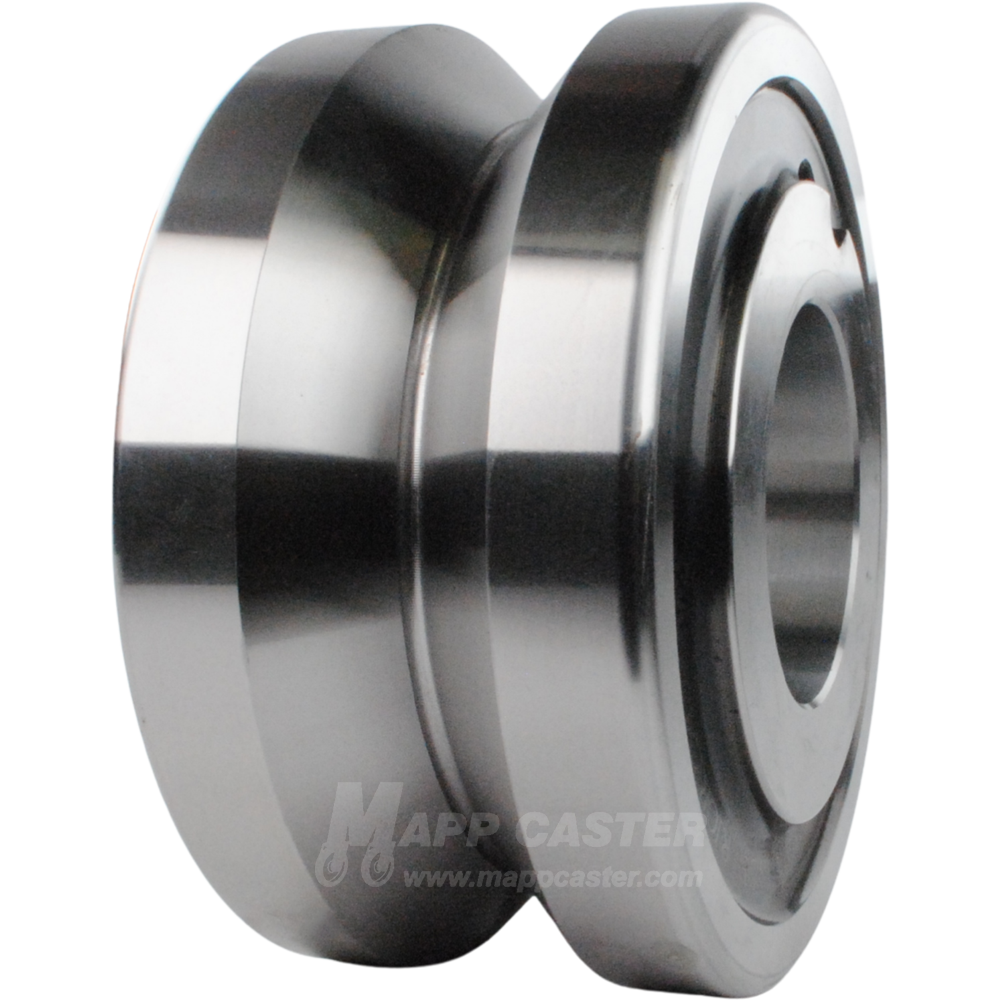

6" x 3" Forged Steel V-Groove Wheel - Part # P063002539
V-Groove wheels are designed to guide equipment along inverted angle iron tracks but can also function without a track due to the tread on both sides of the V-groove. Forged steel wheels are the toughest and most durable steel wheels available. Made from ASTM 1045 high carbon steel and hot drop forged, they offer maximum weight capacity, impact resistance, and long-lasting performance. If you're looking for a more economical alternative with similar strength, consider our ductile steel wheels.
Keep in mind, forged steel is extremely resilient but can be harsh on floors. For heavy-duty applications where floor protection matters, explore our polyurethane on iron wheels for a smoother, floor-safe solution.
*Please note temperature ratings are dependent upon the bearing selected.
Specifications:
 Capacity: 6,000 Lbs. |
 Wheel Type:Forged Steel V-Groove |
 Wheel Diameter:6" |
 Hub Length (without Bearings):3-1/4" |
 Tread Width:3" |
 Hub Length (with Bearings):N/A |
 Groove Width:1-3/8" |
 Groove Depth: 3/4" |
 Bearing Type:None |
 Wheel Durometer:Rockwell 80B |
 Plain Bore ID:2-7/16" |
 Wheel Tread Shape:V-Groove |
 Accepted Axle/Bearing ID:See Bearing Options |
 Wheel Color:Silver |
 Temp Range: -45˚F to 1,300˚F |
 Weight:17.23 lbs |
|
Capacity:6,000 lbs. |
|
Wheel Type:Forged Steel V-Groove |
|
Wheel Diameter:6" |
|
Tread Width:3" |
|
Hub Length (without Bearings):
3-1/4" |
|
Hub Length (with Bearings): N/A
|
|
Groove Width: 1-3/8"
|
|
Groove Depth: 3/4"
|
|
Bearing Type:None |
|
Plain Bore ID:2-7/16" |
|
Accepted Axle/Bearing ID:See Bearing Options |
|
Wheel Durometer:Rockwell 80B |
|
Wheel Tread Shape:V-Groove |
|
Temp Range: -45˚F to 1,300˚F |
|
Wheel Color:Silver |
|
Weight: 17.23 lbs |
