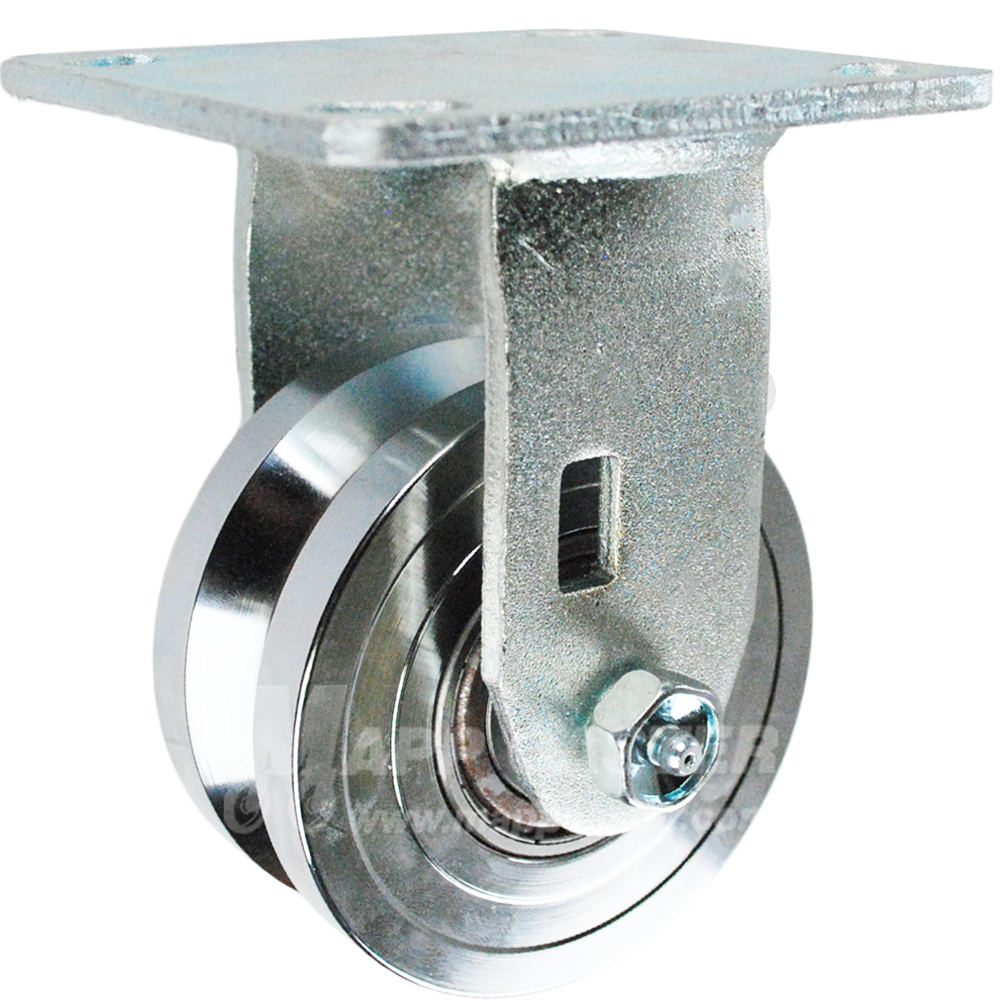

4" x 2" Forged Steel Wheel - V-Groove Caster - 1,500 lb. Capacity - Rigid

4" x 2" Forged Steel Wheel - V-Groove Caster - 1,500 lb. Capacity - Rigid


For heavy duty and heavy loads.

This V-groove wheel is made from solid steel and is one of our most durable wheels. It comes with sealed precision ball bearings and doesnt not require any maintenance. The wheel also has a zinc plating to resist rust. It is most often used with ongoing usage applications such as sliding gates.

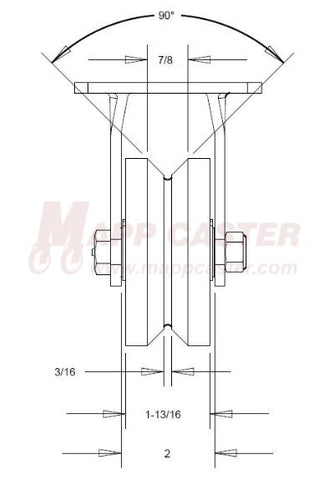

V-groove caster wheels are designed to guide equipment by rolling on inverted angle iron track. Elevated track minimizes problems caused by floor debris. The relief groove at the base of the "V" equalizes the load on each face of the angle. When not operating on track, the considerable wheel tread on each side of the V-groove allows for use on smooth floors.

Call us at 800-262-2807 if you need any help (Mon - Fri 7:30am - 4:30pm CST)

Part Number: J-P5004200VG2

Technical Specs

Metric Specs Metric Specs
Max Capacity 1,500 lb. Hub length 2-3/16"
Wheel Diameter 4” Fits Axle Axle Included
Overall Height 5-1/2” Bearing Sealed Ball Bearing
Groove Width 7/8” Mounting Type Top Plate
Rigid/Swivel Rigid Top Plate Sizes 5" x 4"
Swivel Radius N/A Hole Spacing 2-5/8" x 3-5/8" slotted to 3"x 3"
Wheel Material Forged Steel Attaching Bolt Size 3/8"
Wheel Color Silver/Yellow Zinc Frame Material Standard Iron
Wheel Width 2"
